In the world of fasteners, slotted spherical set screws serve a unique role. Unlike standard set screws, these screws feature a spherical end that provides specific advantages in securing parts without damaging them. If you're working in engineering, manufacturing, or mechanical design, slotted spherical set screws can offer the perfect solution for applications where precision and protection are critical. In this post, we’ll look at what makes slotted spherical set screws unique, how they work, and where they’re most commonly used.
What is a Slotted Spherical Set Screw?

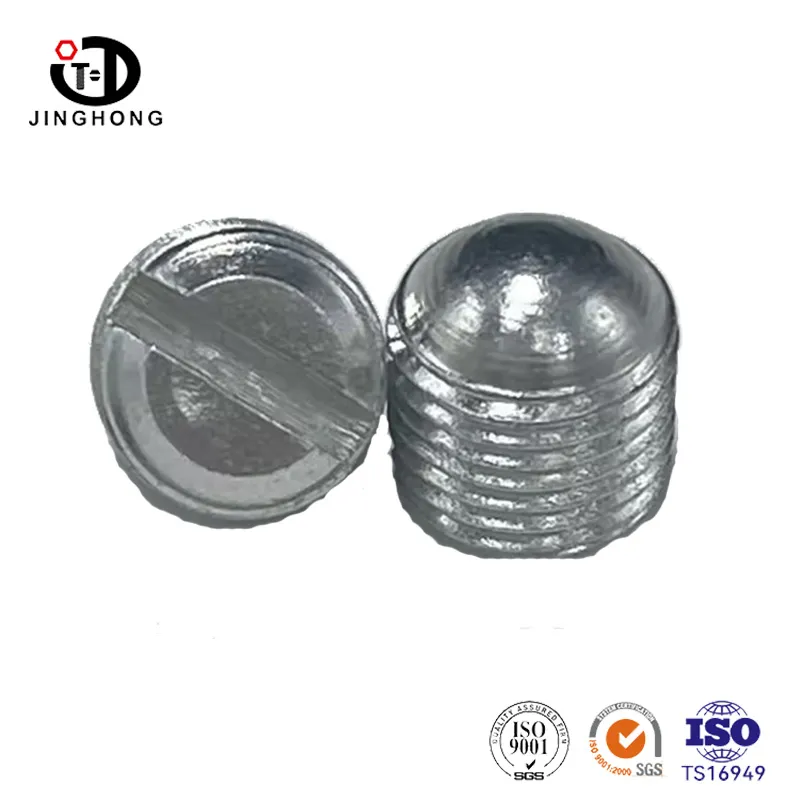

A slotted spherical set screw is a type of fastener designed with a spherical end rather than a flat or conical one. The screw also features a slot on the head, allowing for easy adjustment with a standard slotted screwdriver. The spherical end enables this set screw to make firm contact with a surface without causing excessive pressure points or damage. This makes it especially useful for securing items that need a snug fit but may be prone to damage or need precise alignment.
Key Features of Slotted Spherical Set Screws
1. Spherical End: Unlike typical flat or pointed set screws, the rounded, spherical end of these screws provides a gentler, more even point of contact. This design minimizes the risk of damaging delicate or soft materials and allows for slight movement while maintaining grip.
2. Slotted Head: The slotted head offers easy adjustability with a slotted (flathead) screwdriver. This allows for simple installation, removal, and adjustment as needed, making these screws highly versatile.
3. Durable Material Options: Slotted spherical set screws are often made from durable materials like stainless steel, alloy steel, or brass. These materials ensure that the screws can withstand wear, corrosion, and other challenging conditions, making them suitable for both indoor and outdoor applications.
How Slotted Spherical Set Screws Work
The design of slotted spherical set screws allows them to securely hold a part in place by exerting pressure without causing localized damage. The spherical end enables the screw to make contact over a small area but with a gentler, more distributed force. This can be beneficial in applications where slight adjustments or fine positioning are required without marring the surface.
Common Applications of Slotted Spherical Set Screws
1. Precision Instrumentation: In delicate equipment where precision matters, these screws can secure components without altering their alignment or damaging softer surfaces.
2. Machinery and Equipment: Slotted spherical set screws are commonly used in machinery to hold components in place securely. They can be used in rotating or moving parts, as the spherical end allows for a small amount of movement while still holding the part securely.
3. Optics and Camera Equipment: These screws are often used in the adjustment mechanisms of optical instruments and camera equipment, where delicate positioning is essential.
4. Automotive and Aerospace: In industries where vibration is a factor, slotted spherical set screws are ideal for securing parts that may need minor adjustments during maintenance without compromising the integrity of surrounding materials.
Benefits of Slotted Spherical Set Screws
1. Damage Prevention: The spherical end prevents damage to softer surfaces, making it ideal for applications with delicate materials or where surface integrity is essential.
2. Precision Control: Because the spherical end makes slight adjustments possible without damaging the contact surface, these screws offer better control over alignment and positioning.
3. Reduced Vibration Issues: The spherical design allows for some movement without loosening, which can help reduce the effects of vibration on the components.
4. Ease of Adjustment: The slotted head makes it easy to adjust, allowing for fast and straightforward modifications.
Choosing the Right Slotted Spherical Set Screw
- Material: Choose a material that matches the environmental conditions, such as stainless steel for corrosion resistance or brass for softer contact.
- Size: Ensure the screw size fits your application. Set screws come in various diameters and lengths, so selecting the right size is crucial.
- Thread Type: Match the thread type with your application, as some applications may require metric threads, while others need imperial.
Slotted spherical set screws are an excellent choice when you need secure fastening with minimal damage risk. With a unique spherical end and easy adjustability, these screws provide the perfect solution for precision applications across a range of industries. Consider them for your next project where delicate surfaces or precise alignment are essential.
