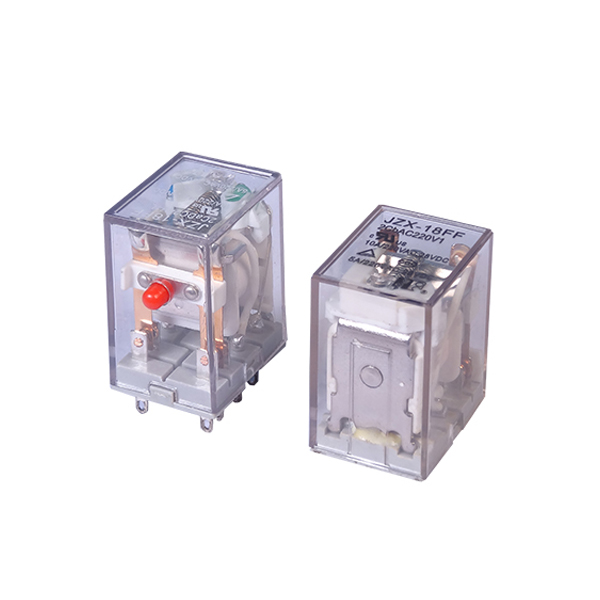

Understanding Latching vs. Non-Latching General Purpose Relays for Heavy Power Switching

2024-04-09

Introduction:

General Purpose Relays for Heavy Power Switching are indispensable components in electrical systems, providing control over high-power loads. One key distinction among these relays is whether they are latching or non-latching. Understanding the differences between these types and their respective applications is crucial for selecting the most suitable relay for a given scenario. In this blog, we'll explore the characteristics of latching and non-latching General Purpose Relays for Heavy Power Switching, along with their ideal use cases.

Latching General Purpose Relays:

Latching relays, also known as bistable relays, maintain their state (either open or closed) even after the control signal is removed. They utilize a mechanical or magnetic latching mechanism to hold the contacts in their last energized position until explicitly reset. Here are some key features of latching relays:

1. Energy Efficiency: Latching relays consume power only during switching operations, as they do not require continuous power to maintain their state. Once set, they remain in their energized position until reset, resulting in energy savings compared to non-latching relays.

2. Bi-Stable Operation: Latching relays have two stable states (energized and de-energized), allowing them to retain their position without the need for continuous coil power. This makes them suitable for applications where power consumption and battery life are critical considerations.

3. Memory Function: Latching relays retain their state even in the absence of a control signal, making them suitable for applications requiring memory function, such as power interruption recovery or remote control systems.

4. Complexity: Latching relays may be more complex and require additional circuitry for control and reset functions compared to non-latching relays. However, their energy-saving benefits and memory function make them ideal for specific applications.

Non-Latching General Purpose Relays:

Non-latching relays, also known as monostable relays, require continuous coil power to maintain their state. They revert to their default position (either open or closed) when the control signal is removed. Here are some key features of non-latching relays:

1. Continuous Power Consumption: Non-latching relays consume power continuously to maintain their state, as they rely on coil energization to keep the contacts closed or open. This results in higher energy consumption compared to latching relays.

2. Simplicity: Non-latching relays are typically simpler in design and operation compared to latching relays, as they do not require additional mechanisms for latching or memory function. This simplicity often translates to lower cost and easier integration into electrical systems.

3. Instantaneous Response: Non-latching relays respond instantaneously to control signals, making them suitable for applications requiring rapid switching operations or real-time control.

4. Limited Memory Function: Non-latching relays do not have memory function and revert to their default state when the control signal is removed. While this may be a limitation in some applications, it simplifies the control logic and reduces complexity.

Suitability and Applications:

- Latching Relays: Latching relays are suitable for applications where energy efficiency, memory function, and reduced power consumption are critical considerations. Examples include remote control systems, power interruption recovery, energy management systems, and battery-powered devices.

- Non-Latching Relays: Non-latching relays are ideal for applications requiring instantaneous response, simplicity, and continuous operation. Examples include motor control, lighting control, HVAC systems, and industrial automation.

Conclusion:

In conclusion, the choice between latching and non-latching General Purpose Relays for Heavy Power Switching depends on the specific requirements of the application. Latching relays offer energy efficiency, memory function, and bi-stable operation, making them suitable for applications where power consumption and memory retention are important. Non-latching relays provide simplicity, instantaneous response, and continuous operation, making them ideal for applications requiring rapid switching and real-time control. By understanding the differences between these relay types and their respective advantages, engineers can select the most suitable relay for their application needs, ensuring optimal performance and efficiency in electrical systems.
