Understanding High Speed Fuses: What They Are and How They Work

2024-08-22

Introduction

In the world of electrical protection, fuses play a crucial role in safeguarding devices and circuits from the dangers of overcurrent. Among the various types of fuses, High Speed Fuses stand out for their unique ability to protect sensitive electronic components, particularly in applications involving semiconductors. But what exactly is a High Speed Fuse, and how does it differ from standard fuses? In this blog, we’ll explore the fundamentals of High Speed Fuses, their functionality, and why they are essential in certain electrical systems.


What is a High Speed Fuse?

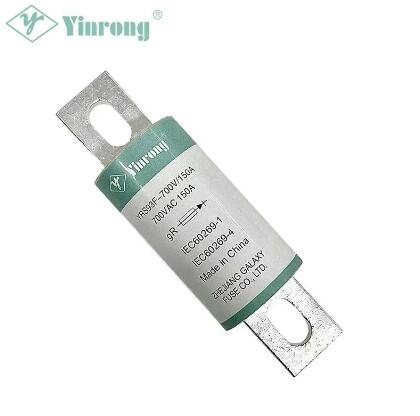

A High Speed Fuse, also known as a semiconductor fuse or ultra-fast fuse, is specifically designed to protect semiconductor devices such as diodes, thyristors, and IGBTs (Insulated Gate Bipolar Transistors) from overcurrent events. These devices are particularly sensitive to current spikes and can be easily damaged by even brief overcurrent conditions. High Speed Fuses are engineered to react almost instantaneously to such events, ensuring that the semiconductor devices remain unharmed.


How Do High Speed Fuses Work?

The operation of a High Speed Fuse is based on its ability to interrupt a circuit quickly when an overcurrent is detected. This is achieved through a highly conductive fuse element, typically made of materials like silver or copper, which melts rapidly under excessive current. The fuse element’s design and materials are optimized for minimal energy let-through, which refers to the energy allowed to pass through the fuse before it interrupts the circuit.


Here’s how it works in detail:

1. Current Flow: Under normal operating conditions, current flows through the fuse element with minimal resistance.

2. Overcurrent Detection: When an overcurrent occurs, the fuse element heats up rapidly due to the increased electrical resistance.

3. Fuse Operation: The fuse element melts quickly, creating an open circuit and stopping the flow of electricity almost instantaneously.

4. Arc Quenching: An arc-quenching medium, often silica sand, extinguishes the electrical arc generated when the fuse element melts, ensuring safe circuit interruption.


Key Features of High Speed Fuses

- Ultra-Fast Response Time: High Speed Fuses are designed to operate within microseconds, making them significantly faster than standard fuses.

- Low Energy Let-Through: These fuses limit the amount of energy that passes through during a fault, reducing the risk of damage to sensitive components.

- Precision Engineering: The materials and construction of High Speed Fuses are carefully selected to ensure consistent performance under demanding conditions.


Applications of High Speed Fuses

High Speed Fuses are commonly used in applications where semiconductor devices are employed. These include:

- Power Converters: Protecting components in power conversion systems, such as those used in renewable energy installations.

- Electric Vehicles (EVs): Safeguarding the sophisticated electronics in EVs from overcurrent events.

- Industrial Drives: Protecting the drive systems in industrial motors and machinery, where precise control and protection are required.

- Uninterruptible Power Supplies (UPS): Ensuring the reliability of UPS systems by protecting the internal electronics from faults.


Conclusion

High Speed Fuses are indispensable in protecting sensitive semiconductor devices from the destructive effects of overcurrent. Their ultra-fast response time, low energy let-through, and precise engineering make them ideal for applications where standard fuses would not provide adequate protection. Understanding how High Speed Fuses work and where they are used can help engineers and technicians select the right fuse for their specific needs, ensuring the safety and reliability of their electrical systems.
