Hydraulic pumps are the heart of hydraulic systems, powering everything from construction machinery to industrial presses. To better understand their operation and maintenance, let’s dissect the main components of a hydraulic pump and explore how they contribute to its functionality.
Overview of Hydraulic Pumps
A hydraulic pump creates fluid flow that powers actuators and motors in a hydraulic system. Whether in heavy-duty excavators or compact agricultural equipment, the pump relies on several key components to perform efficiently.

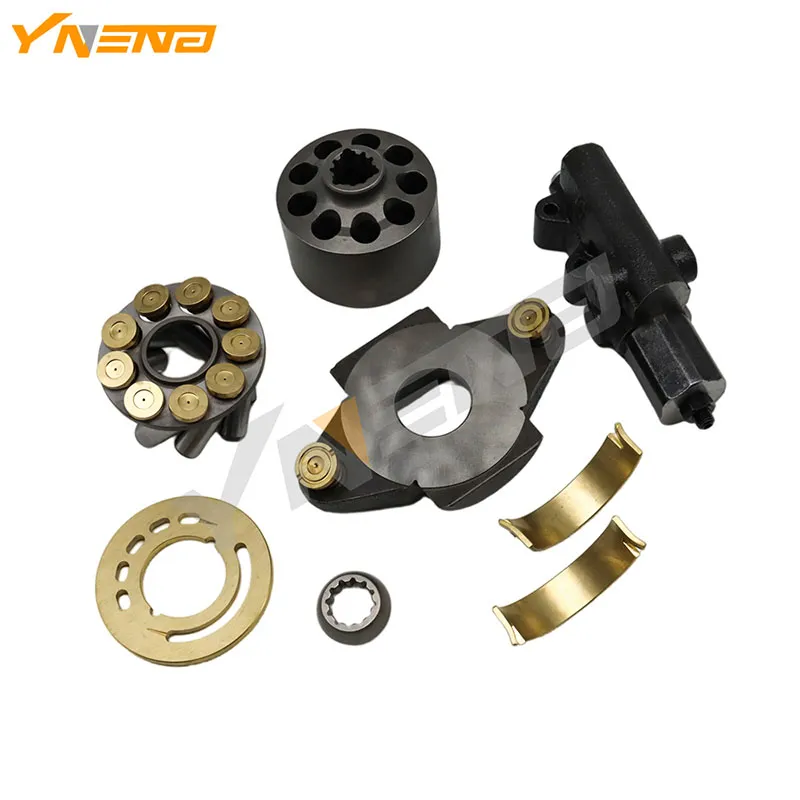

Core Components of a Hydraulic Pump
1. Pump Housing (Casing)
- Purpose: Protects internal components from external elements and contains hydraulic fluid under pressure.
- Importance: A robust housing ensures durability and prevents fluid leakage.
2. Fluid Displacement Mechanism
- Types Based on Pump Design:
- Gear Pumps: Intermeshing gears create suction and pressure.
- Piston Pumps: Pistons move within cylinders to pressurize fluid.
- Vane Pumps: Vanes sliding within a rotor displace fluid.
3. Drive Shaft
- Role: Transmits energy from the motor or engine to the pump, initiating fluid displacement.
4. Bearings and Bushings
- Function: Reduce friction between moving parts and support the rotation of the drive shaft.
5. Seals and O-Rings
- Purpose: Maintain pressure by preventing fluid leakage and contamination.
6. Control Valve or Mechanism
- Found in variable displacement pumps, this component regulates the amount of fluid displaced, allowing for precise flow control.
7. Inlet and Outlet Ports
- Role: Facilitate fluid movement into and out of the pump, ensuring a continuous flow within the hydraulic system.
8. Wear Plates and Linings
- Function: Protect internal surfaces from wear caused by fluid movement and friction.
How These Components Contribute to Functionality
The pump casing houses all critical components, while the drive shaft activates the displacement mechanism (gears, pistons, or vanes). The fluid enters through the inlet port, is pressurized by the displacement mechanism, and exits through the outlet port. Bearings and seals ensure smooth operation and prevent leaks, while wear plates extend the life of internal parts.
Common Issues with Hydraulic Pump Components
1. Leaking Seals:
- Causes: Worn-out seals or contamination.
- Solution: Replace seals promptly.
2. Bearing Failure:
- Causes: Insufficient lubrication or excessive load.
- Solution: Regular maintenance and appropriate lubrication.
3. Wear and Tear on Moving Parts:
- Causes: Continuous friction and high pressure.
- Solution: Replace worn components and ensure proper alignment.
Key Considerations for Selecting Hydraulic Pump Components
1. Material Durability: Choose components made of high-quality materials to withstand pressure and temperature.
2. Compatibility: Ensure parts are compatible with the pump model and hydraulic system.
3. Maintenance Accessibility: Opt for designs that allow easy inspection and replacement of components.
Understanding the main components of a hydraulic pump provides valuable insights into its operation, maintenance, and troubleshooting. By focusing on the roles and interplay of these parts, technicians and operators can ensure their hydraulic systems run efficiently, delivering optimal performance in demanding applications.
