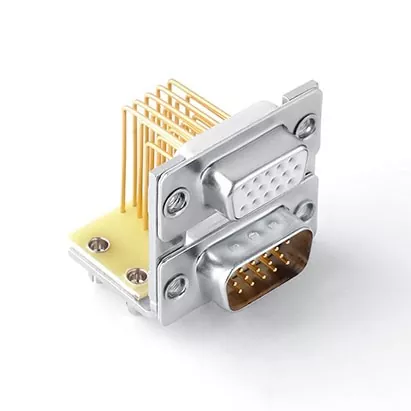

A Comprehensive Guide to the 15 Pin Dual Port Right Angle D-Sub Connector

2024-11-13

When it comes to connecting electronic devices, ensuring reliable data transmission and signal integrity is critical. One connector type that excels in achieving stable, high-quality connections is the 15 Pin Dual Port Right Angle D-Sub Connector. Recognized for its durability, versatility, and space-saving design, this connector plays an essential role in data transfer, industrial controls, and audiovisual setups. In this blog, we’ll explore the features, functions, and benefits of the 15 Pin Dual Port Right Angle D-Sub Connector and why it’s widely used in various applications.


Understanding the Basics of the 15 Pin Dual Port Right Angle D-Sub Connector

The D-sub connector family is known for its D-shaped metal shield, which provides robust EMI (electromagnetic interference) protection and adds mechanical stability. The “15 Pin” designates the number of electrical contacts within the connector, arranged in two or three rows. This particular connector type, “Dual Port,” refers to two side-by-side connectors that allow multiple connections simultaneously, increasing versatility.


The right-angle orientation of the connector enables it to mount at a 90-degree angle to the PCB or panel, saving space and protecting cables from bending or stress. This orientation is especially beneficial in compact systems, helping ensure that the connector fits neatly in small spaces.


Key Features of the 15 Pin Dual Port Right Angle D-Sub Connector

1. High Connection Density

  - The 15 pins allow for multiple data or signal connections within a single interface. This density is beneficial for complex electronic systems where multiple signals need to be transmitted simultaneously.


2. Dual-Port Configuration

  - With two ports in one connector, this setup provides the capability to support dual connections in one footprint. This is ideal for systems that need multiple parallel connections without taking up additional space on the board.


3. Right-Angle Design for Space Optimization

  - The 90-degree angle design is efficient for setups with limited space. Right-angle connectors allow for close stacking of components and reduce cable strain, which can improve longevity.


4. Durable Shielding and EMI Protection

  - The D-shaped metal shield not only offers mechanical support but also protects against EMI. This protection is critical in industrial and communications equipment, where signal integrity is essential for system reliability.


5. Screw Lock Mechanism

  - These connectors typically feature screw locks, providing a secure connection that resists vibration and accidental disconnection. The screw-locking feature is especially important in applications where stability and reliability are priorities.


Applications of the 15 Pin Dual Port Right Angle D-Sub Connector

The versatility of this connector type allows it to be used across a wide range of applications:

1. Computing and Networking Equipment

  - Often used in legacy serial ports, the 15 Pin Dual Port D-Sub Connector is still found in computing and networking systems requiring stable data transmission. It provides a reliable connection interface for components like printers, servers, and display monitors.


2. Industrial Automation

  - In manufacturing environments, these connectors are used to connect machinery, sensors, and controllers. The right-angle design helps it fit neatly into control panels, ensuring an organized and compact setup.


3. Audio and Video Systems

  - The 15 Pin D-Sub Connector is widely used in VGA connections for video displays. This connector supports multiple channels and can be used to transmit high-quality video or audio signals in professional AV setups.


4. Test and Measurement Equipment

  - Due to their durable design and signal integrity, these connectors are often found in test and measurement devices. They are ideal for applications that require secure, stable connections to transmit data accurately.


Benefits of Using the 15 Pin Dual Port Right Angle D-Sub Connector

1. Space Efficiency

  - With its dual-port and right-angle design, this connector type helps maximize available board space, allowing for more components within a limited area.


2. Reliability in Signal Transmission

  - The shielded design ensures minimal interference, which is essential for accurate data transmission and high-quality audio or video signals.


3. Cost-Effective

  - D-sub connectors offer a reliable and affordable solution for multiple connection needs, particularly for high-density applications.


4. Easy Installation and Maintenance

  - With the screw-lock mechanism, these connectors are easy to install and maintain. Once connected, they remain secure, even in applications where the equipment is subject to movement or vibration.


The 15 Pin Dual Port Right Angle D-Sub Connector is a valuable choice for engineers, technicians, and product designers looking to implement durable and efficient connections in compact spaces. With benefits like EMI protection, reliability, and space-saving design, this connector has found a firm place in computing, industrial automation, and AV systems. For anyone looking to streamline their electronic connections without sacrificing quality, this connector type is an excellent choice.
